Hallo,

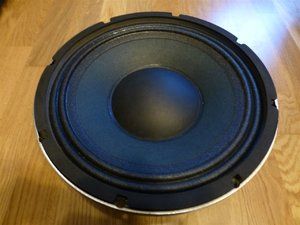

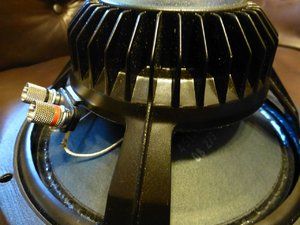

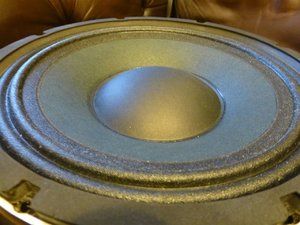

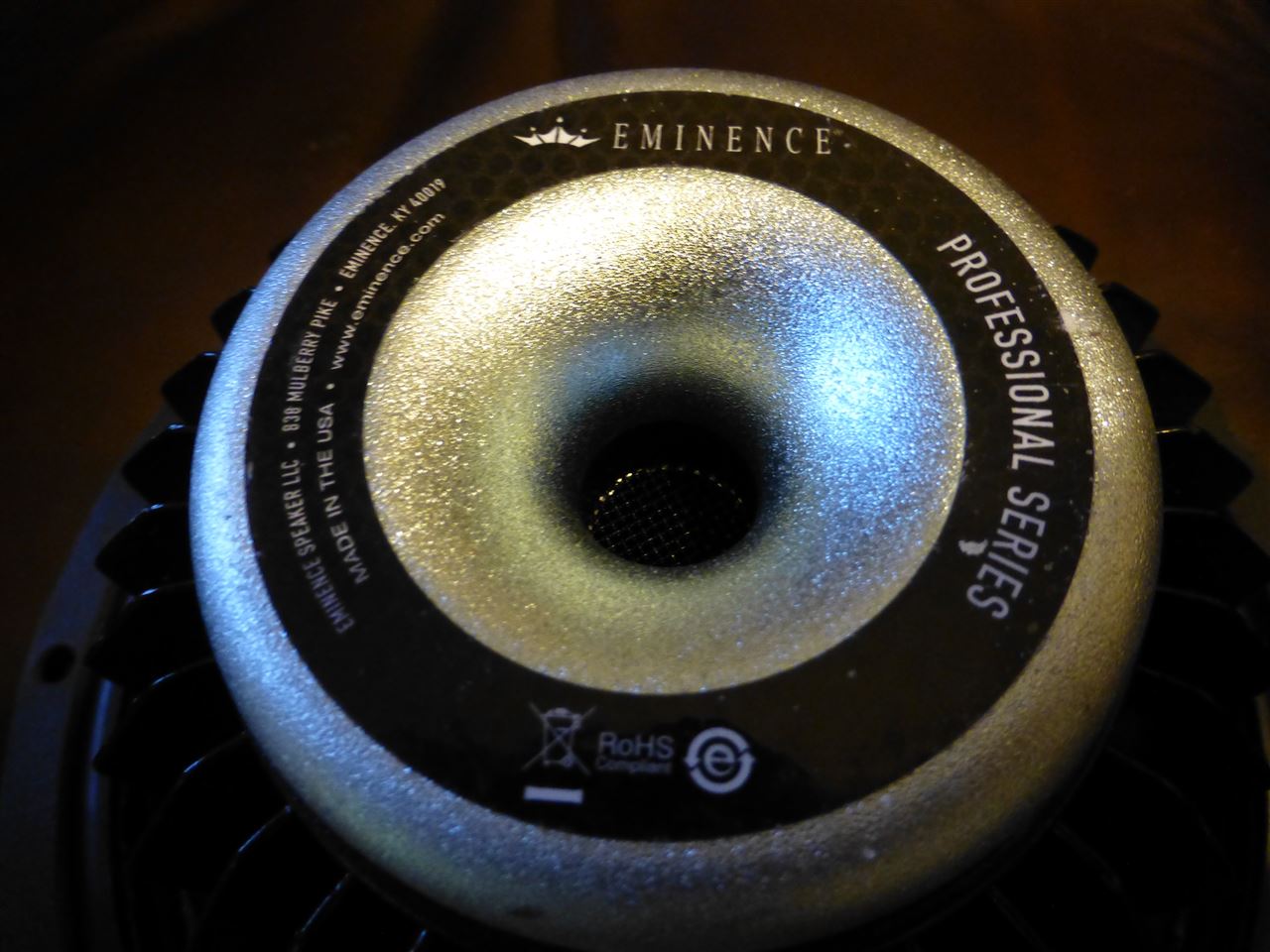

verkaufe/tausche meinen neuwertigen Eminence Deltalite 2510 II. 250W und 8Ohm
Preis: 55€
Der Speaker ist vom Boxenbau übrig und so gut wie unbenutzt.
LG Chris
DATEN:
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating**
Watts 250 W
Music Program 500 W
Resonance 53 Hz
Usable Frequency Range 60 Hz - 4 kHz
Sensitivity*** 97.3 dB
Magnet Weight 7 oz.
Gap Height 0.275", 7 mm
Voice Coil Diameter 2.5", 64 mm
Thiele & Small Parameters
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 5.06 Ω
Coil Inductance (Le) 0.4m H
Mechanical Q (Qms) 5.76
Electromagnetic Q (Qes) 0.45
Total Q (Qts) 0.42
Compliance Equivalent Volume (Vas) 52.5 liters / 1.85 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 147 cc
Mechanical Compliance of Suspension (Cms) 0.3 mm/N
BL Product (BL) 10.6 T-M
Diaphragm Mass Inc. Airload (MMs) 31 grams
Efficiency Bandwidth Product (EBP) 117
Maximum Linear Excursion (Xmax) 4.2 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 8 mm
Mounting Information
Recommended Enclosure Volume
Sealed 12.7-17 liters / 0.45-0.6 cu.ft.
Vented 17-39.6 liters / 0.6-1.4 cu.ft.
Driver Volume Displaced 0.026 cu.ft. / 0.74 liters
Overall Diameter 10.25", 260.4 mm
Baffle Hole Diameter 9.15", 232.4 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 9.73", 247.1mm
Depth 4.9", 124.5 mm
Net Weight 4.6 lbs, 2.09 kg
Shipping Weight 5.7 lbs, 2.59 kgs
verkaufe/tausche meinen neuwertigen Eminence Deltalite 2510 II. 250W und 8Ohm
Preis: 55€
Der Speaker ist vom Boxenbau übrig und so gut wie unbenutzt.
LG Chris
DATEN:
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating**
Watts 250 W
Music Program 500 W
Resonance 53 Hz
Usable Frequency Range 60 Hz - 4 kHz
Sensitivity*** 97.3 dB
Magnet Weight 7 oz.
Gap Height 0.275", 7 mm
Voice Coil Diameter 2.5", 64 mm
Thiele & Small Parameters
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 5.06 Ω
Coil Inductance (Le) 0.4m H
Mechanical Q (Qms) 5.76
Electromagnetic Q (Qes) 0.45
Total Q (Qts) 0.42
Compliance Equivalent Volume (Vas) 52.5 liters / 1.85 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 147 cc
Mechanical Compliance of Suspension (Cms) 0.3 mm/N
BL Product (BL) 10.6 T-M
Diaphragm Mass Inc. Airload (MMs) 31 grams
Efficiency Bandwidth Product (EBP) 117
Maximum Linear Excursion (Xmax) 4.2 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 8 mm
Mounting Information
Recommended Enclosure Volume
Sealed 12.7-17 liters / 0.45-0.6 cu.ft.
Vented 17-39.6 liters / 0.6-1.4 cu.ft.
Driver Volume Displaced 0.026 cu.ft. / 0.74 liters
Overall Diameter 10.25", 260.4 mm
Baffle Hole Diameter 9.15", 232.4 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 9.73", 247.1mm
Depth 4.9", 124.5 mm
Net Weight 4.6 lbs, 2.09 kg
Shipping Weight 5.7 lbs, 2.59 kgs
