TC Electronic RH 750

TC Electronic RH 750 Watt

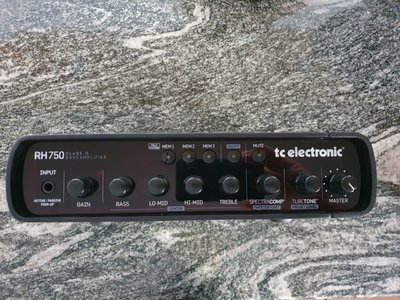

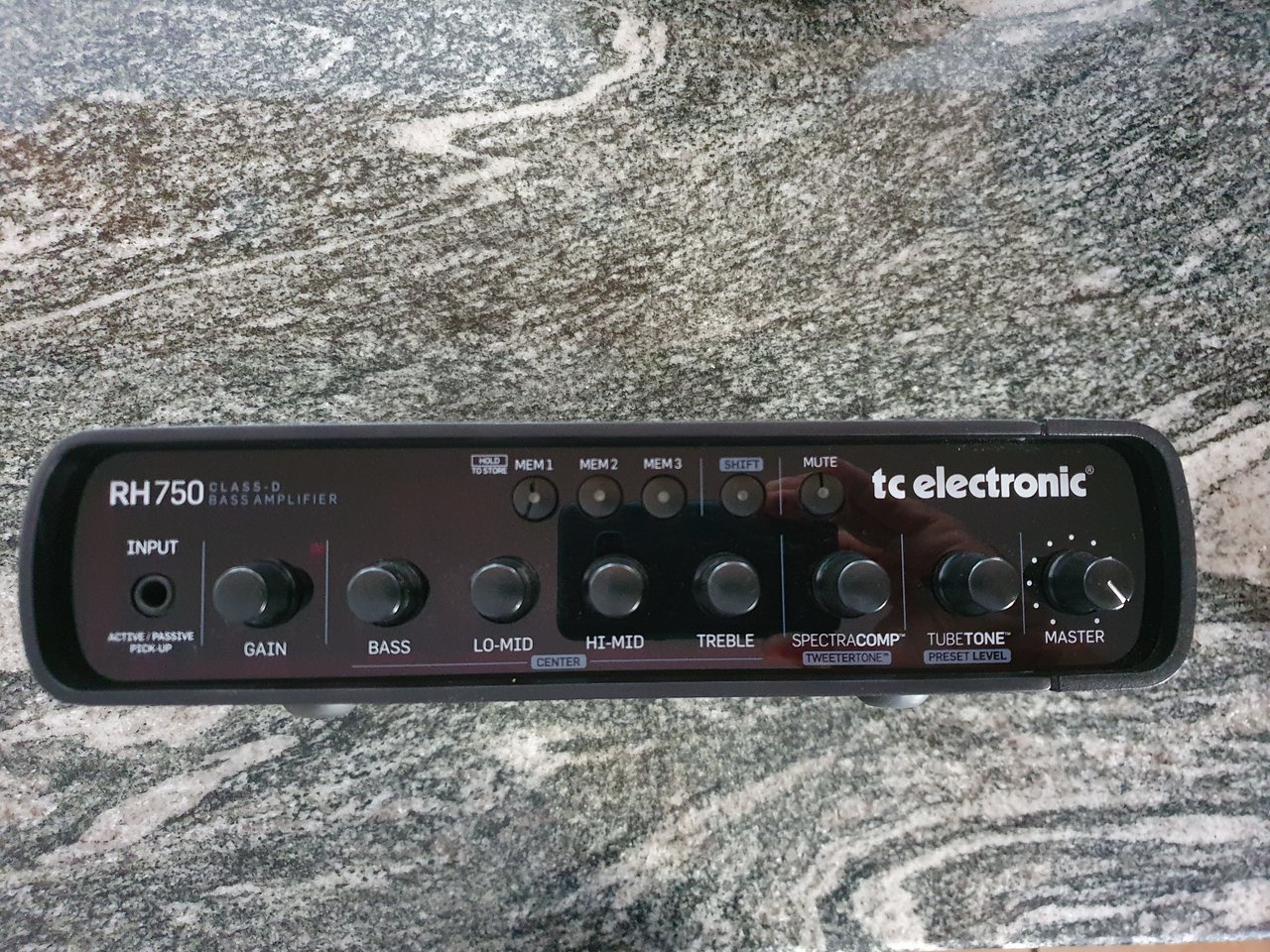

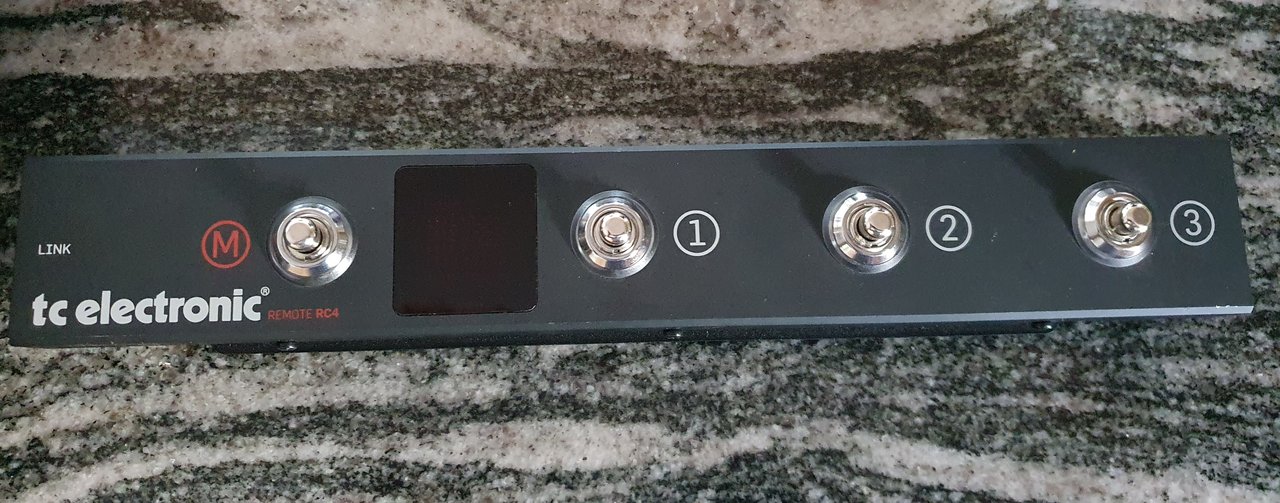

Verkaufe mein Topteil TC Electronic RH 750. So gut wie keine Gebrauchsspuren inkl. RC4 Fußtaster. Leider sind zwei Bedienknöpfe eingrissen (siehe Fotos). Ist ein altes Leiden der RH Baureihe. Die Bedienknöpfe funktionieren aber einwandfrei.
Nähere Infos unter TCElectronic | Product | RH750
rh750-de-09-25-12.pdf ()
Specifications: Gewicht: 4kg
Input Section:

• Input Connector: 1/4" jack
• Input Impedance: 1 MOhm / 100 pF
• Gain Range: -96 to 32 dB
• Power Amp In: 1/4" Jack, balanced input, impedance = 10 kOhm, Max Input Level = +8 dBu
• Rehearsal Input: RCA, Left/Right input, fits to iPod

Tone Controls:

• Bass: Default Freq: 200 Hz (range: 71-1120 Hz, Gain: +15/-24 d - Shelving type.
• Low Mid: Default Freq: 400 Hz (range: 100-1600 Hz, Gain: +15/-24 d
• High Mid: Default Freq: 800 Hz (range: 200-3150 Hz, Gain: +15/-24 d
• Treble: Default Freq: 4000 Hz (range: 400-6300 Hz, Gain: +15/-24 d - Shelving type.
• TweeterTone: -12 to 12, L-PAD Cabinet Recreation
• TubeTone: 0 to 12, Tube amp Recreation
• SpectraComp: 3 band Spectral Compression
• Preset Level: -12 dB to 0 gain attenuation
• User Memories: 3 memory locations storing all front panel controls except Mute & Master Level

Output:

• Master Level Headphone Output: Studio quality headphone amp
• Impedance: 40 to 600 Ohm

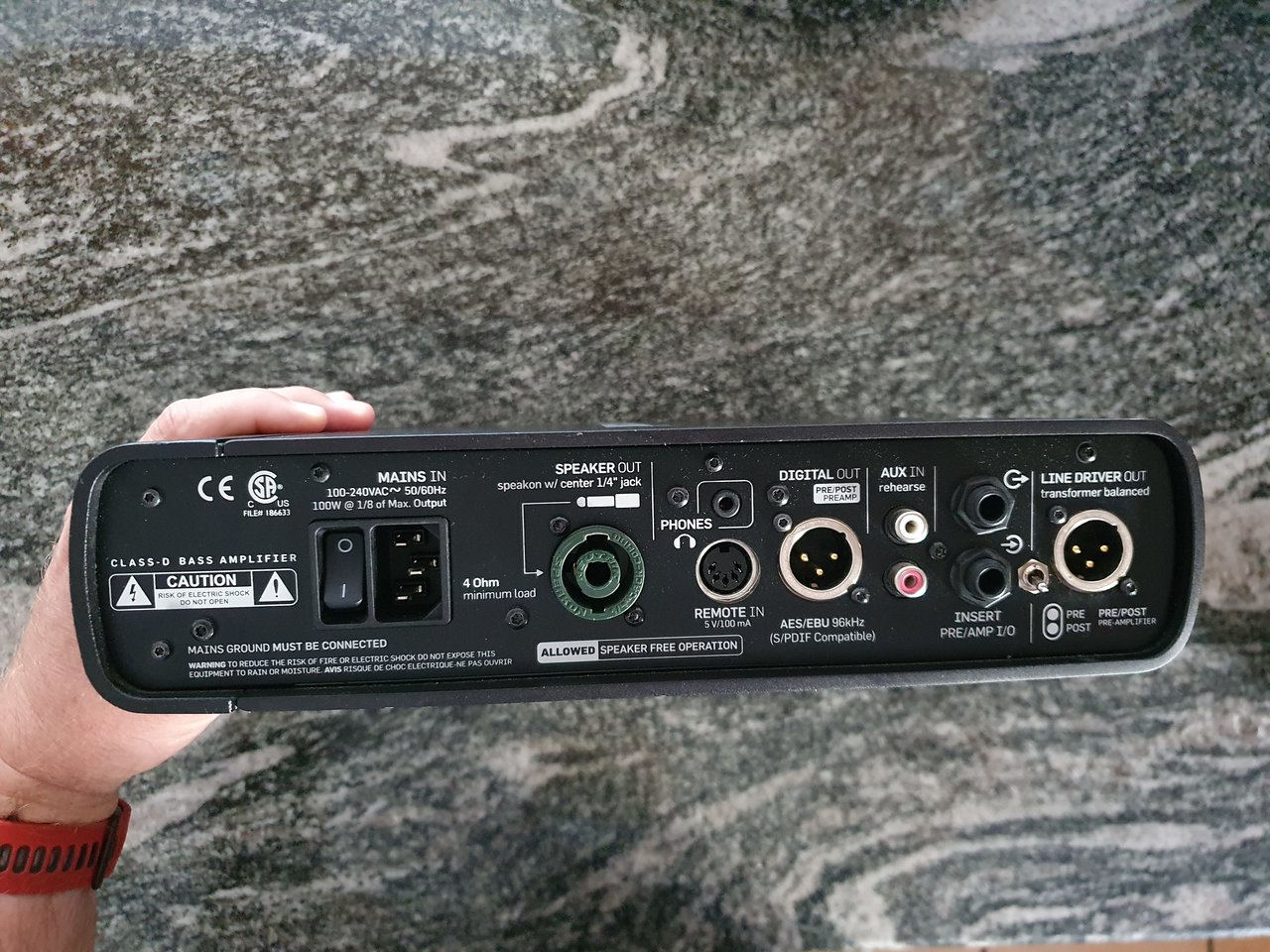

• Speaker Out: Combined Speakon / 1/4" jack
• Power Rating: 750 W (1200 W Peak)
• Balanced Output: Transformer Balanced XLR, Pre/Post Pre-amp
• Max. Output: +0 dBu
• Optimal Load Impedance: 600 Ohm
• Preamp Out: 1/4" Jack, Balanced Output, Max Output Level = +8 dBu
• Digital Recording out: Balanced XLR, AES/EBU, (24 Bit)
• Remote Connection: 5 pin DIN, Cable with shield
