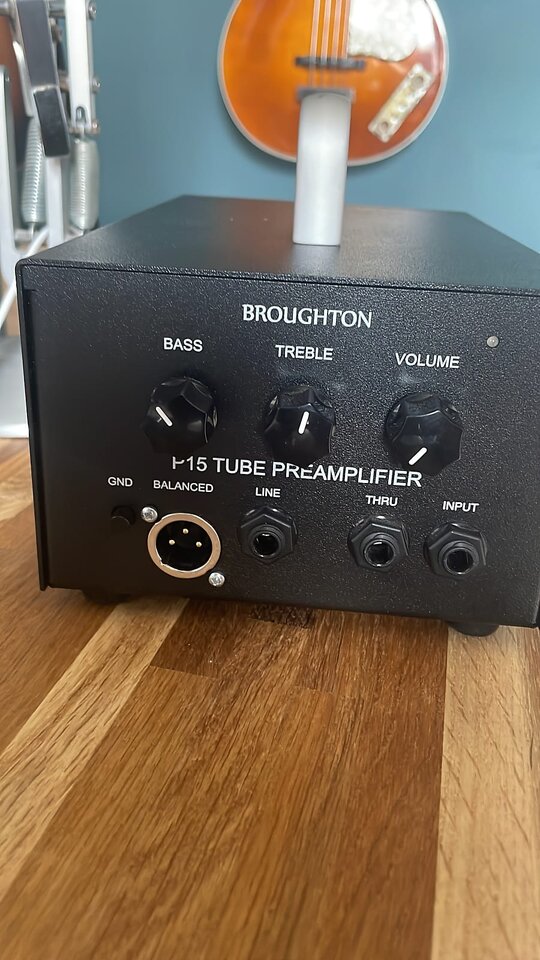

Preamp DI tube Broughton P15
Same preamp as AMPEG B15N
Specs :
New look, same P15 preamp: The P15 preamp has a new look, but the same internal tube, transformers, and overall design. Manufacturing of the P15 steel chassis has been moved to a Canadian company in order to provide a more consistent output, which means better availability of the preamp.
Purchasing
The P15 ships within three business days of purchasing. Please do not order more than one preamp, or combine your order with other pedals. If the P15 is out of stock, please check this page for future release updates.
Description
Overview The P15 is a tube preamp based on the classic B15 bass amplifier. It is an exact recreation of the preamp section, using one 6SL7 tube. The topology is based on the later models that place the Volume control after the first gain stage, followed by the second gain stage driving the Bass and Treble equalizer. A high voltage MOSFET cleanly drives both the line output and the transformer coupled balanced output.
Input
The input is designed for mono instrument level signals via a 1/4" jack. Additionally, the P15 has a "Thru" jack. You can use your input signal coming out of the Thru jack to feed another device, such as a tuner, or a bass amp. The P15 does not affect the signal of the Thru jack. The input is muted when neither jack is used.
Controls
Same preamp as AMPEG B15N
Specs :
New look, same P15 preamp: The P15 preamp has a new look, but the same internal tube, transformers, and overall design. Manufacturing of the P15 steel chassis has been moved to a Canadian company in order to provide a more consistent output, which means better availability of the preamp.
Purchasing
The P15 ships within three business days of purchasing. Please do not order more than one preamp, or combine your order with other pedals. If the P15 is out of stock, please check this page for future release updates.
Description
Overview The P15 is a tube preamp based on the classic B15 bass amplifier. It is an exact recreation of the preamp section, using one 6SL7 tube. The topology is based on the later models that place the Volume control after the first gain stage, followed by the second gain stage driving the Bass and Treble equalizer. A high voltage MOSFET cleanly drives both the line output and the transformer coupled balanced output.
Input
The input is designed for mono instrument level signals via a 1/4" jack. Additionally, the P15 has a "Thru" jack. You can use your input signal coming out of the Thru jack to feed another device, such as a tuner, or a bass amp. The P15 does not affect the signal of the Thru jack. The input is muted when neither jack is used.
Controls
